  • 1.25g SFP single fiber optical module.jpg

1.25G SFP single fiber optical module

Category:

Optical Module

weight

0

Quantity
-
+

Inventory

0

隐藏域元素占位

Description


Product features

Multi-rate 2.125 Gbps/2.488 Gbps

Comply with SFP multi-source protocol and SFF-8472, LC single fiber connector

DDM digital diagnostic monitoring function

Can be used for SONET 0C-24-LR-1

Compliance with RoHS certification

3.3V working voltage

Commercial grade operating temperature: 0℃~70℃



Product parameters

Product Model Rate Encapsulation Type The Wavelength Transmission Distance Transmitted Power Working Temperature Receiving Sensitivity The Interface Type Type Of Optical Device
TR-FBCA-3155-1 1.25G SFP 1310/1550 3KM -10~-4 0~70 <-20 LC FP+PIN
TR-FBCA-5531-1 1.25G SFP 1550/1310 3KM -10~-4 0~70 <-20 LC FP+PIN
TR-FBCA-3155-L 1.25G SFP 1310/1550 10KM -9~-3 0~70 <-22 LC FP+PIN
TR-FBCA-5531-L 1.25G SFP 1550/1310 10KM -9~-3 0~70 <-22 LC DFB+PIN
TR-FBCA-3155-2 1.25G SFP 1310/1550 20KM -9~-3 0~70 <-22 LC FP+PIN
TR-FBCA-5131-2 1.25G SFP 1550/1310 20KM -9~-3 0~70 <-22 LC DFB+PIN
TR-FBCA-3149-2 1.25G SFP 1310/1490 20KM -9~-3 0~70 <-22 LC FP+PIN
TR-FBCA-4931-2 1.25G SFP 1490/1310 20KM -9~-3 0~70 <-22 LC DFB+PIN
TR-FBCA-3155-4 1.25G SFP 1310/1550 40KM -5~0 0~70 <-24 LC DFB+PIN
TR-FBCA-5531-4 1.25G SFP 1550/1310 40KM -5~0 0~70 <-24 LC DFB+PIN
TR-FBCA-3149-4 1.25G SFP 1310/1490 40KM -5~0 0~70 <-24 LC DFB+PIN
TR-FBCA-4931-4 1.25G SFP 1490/1310 40KM -5~0 0~70 <-24 LC DFB+PIN
TR-FBCA-3155-6 1.25G SFP 1310/1550 60KM 0~5 0~70 <-26 LC DFB+PIN
TR-FBCA-5531-6 1.25G SFP 1550/1310 60KM 0~5 0~70 <-26 LC DFB+PIN
TR-FBCA-5549-8 1.25G SFP 1550/1490 80KM 0~5 0~70 <-26 LC DFB+PIN
TR-FBCA-4955-8 1.25G SFP 1490/1550 80KM 0~5 0~70 <-26 LC DFB+PIN
TR-FBCA-5549-C 1.25G SFP 1550/1490 120KM 1~5 0~70 <-32 LC DFB+APD
TR-FBCA-4955-C 1.25G SFP 1490/1550 120KM 1~5 0~70 <-32 LC DFB+APD



Product Model Rate Encapsulation Type The Wavelength Transmission Distance Transmitted Power Working Temperature Receiving Sensitivity The Interface Type Type Of Optical Device
TR-FBCS-3155-1 1.25G SFP 1310/1550 3KM -10~-4 0~70 <-20 SC FP+PIN
TR-FBCS-5531-1 1.25G SFP 1550/1310 3KM -10~-4 0~70 <-20 SC FP+PIN
TR-FBCS-3155-2 1.25G SFP 1310/1550 20KM -9~-3 0~70 <-22 SC FP+PIN
TR-FBCS-5531-2 1.25G SFP 1550/1310 20KM -9~-3 0~70 <-22 SC DFB+PIN
TR-FBCS-3155-4 1.25G SFP 1310/1550 40KM -5~0 0~70 <-24 SC DFP+PIN
TR-FBCS-5531-4 1.25G SFP 1550/1310 40KM -5~0 0~70 <-24 SC DFB+PIN
TR-FBCS-4955-8 1.25G SFP 1490/1550 80KM 0~5 0~70 <-26 SC DFP+PIN
TR-FBCS-5549-8 1.25G SFP 1550/1490 80KM 0~5 0~70 <-26 SC DFB+PIN

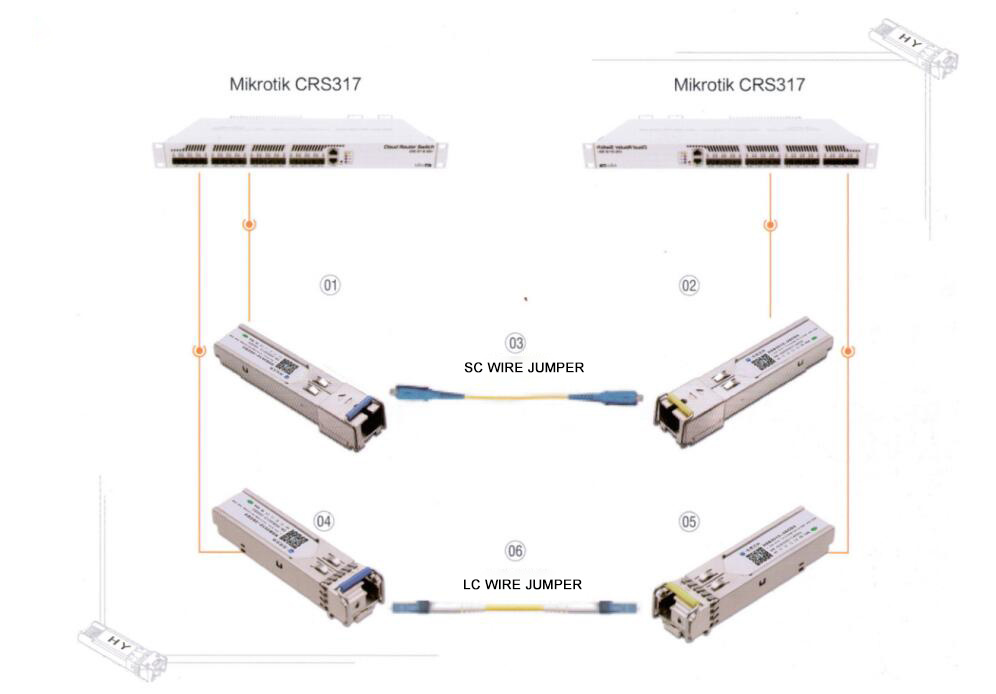

Serial Number Product Model Describe
1 TR-FBCS-3155-1 1. 25G BIDI TX1310nmRX1550nm  SC 3KM DDM
2 TR-FBCS-5531-1 1.25g Bidi TX1550nm RX1310nm SC 3KM DDM
3 SC jumper SC/UPC-SC/UPC Single Mode Single Fiber OS2
4 TR-FBCA-3155-1 1.25G BIDI TX1310NMRX1550NM LC 3KM DDM
5 TR-FBCA-5531-1 1.25g Bidi TX1 550nm RX1310nm LC 3KM DDM
6 LC jumper LC/UPC-LC/UPC Single Mode Double Fiber OS2



Application scenarios
